Description

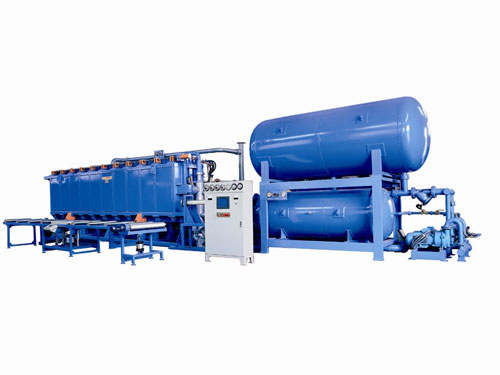

Vacuum block molding machine is used for molding EPS beads to form blocks. EPS blocks are then cut into sheets for house insulation or packing. EPS blocks are popularly used to make EPS sandwich panels, 3D panels, wall insulation panels, glass packing and furniture packing, etc. This EPS molding machine is composed of control box, vacuum system and weighing system, etc. Vacuum block molding machine can produce high density blocks with low water content. This machine works fast cycle.

Features

• 1. This EPS molding machine is made of high-strength square tubes and thick steel plates.
• 2. The six panels of this vacuum block molding machine are all heat treated to release welding stress. The panels don’t deform under high temperature.
• 3. After heat treatment, all panels are processed through sand blasting treatment to remove rust.   The panels are painted twice to keep the machine anti-corrosion.
• 4. Three ball valves are used in the vacuum block molding machine to control steam volume. This method saves 20% steam contrasted with the traditional on-valve system.
• 5. Steaming is controlled by timer and three German electrical gauge switches. There is a safety valve used for preventing gauge malfunction situation.
• 6. This EPS molding machine is controlled by PLC. It can be operated through touch screen.

• Package and Delivery
  The vacuum block molding machine is packed with container and is transported by sea.

Parameters

• Vacuum Block Molding Machine (Models: PSB-DZ200 ~ PSB-DZ600)
  Item		PSB-DZ200	PSB-DZ300	PSB-DZ400	PSB-DZ600
  Mould Cavity Size		2040×1240×1030 (mm)	3060×1240×1030 (mm)	4080×1240×1030 (mm)	6100×1240×1030 (mm)
  Block Size		2000×1200×1000 (mm)	3000×1200×1000 (mm)	4000×1200×1000 (mm)	6000×1200×1000 (mm)
  Steam	Entry	DN80	DN80	DN150	DN150
  	Consumption	30-50 kg/cycle	50-70 kg/cycle	60-90 kg/cycle	100-130 kg/cycle
  	Pressure	0.8 Mpa	0.8 Mpa	0.8 Mpa	0.8 Mpa
  Compressed Air	Entry	DN40	DN40	DN40	DN40
  	Consumption	1.5-2 m³/cycle	1.8-2.2m³/cycle	2-2.5m³/cycle	2-3m³/cycle
  	Pressure	0.6 Mpa	0.6 Mpa	0.6 Mpa	0.6 Mpa
  Cooling Water	Entry	DN40	DN40	DN40	DN40
  	Consumption	0.2-0.5 m³/cycle	0.4-0.6 m³/cycle	0.6-0.8 m³/cycle	0.8-1 m³/cycle
  	Pressure	0.4-0.6 Mpa	0.4-0.6 Mpa	0.4-0.6 Mpa	0.4-0.6 Mpa
  Drainage	Vacuum Drain	Φ125 mm	Φ125 mm	Φ125 mm	Φ125 mm
  	Steam Vent	Φ100 mm	Φ100 mm	Φ200 mm	Φ200 mm
  	Condensate	Φ100 mm	Φ100 mm	Φ100 mm	Φ100 mm
  	Blower Outlet	Φ125 mm	Φ125 mm	Φ150 mm	Φ150 mm
  Throughput	15kg/m³	5 min/cycle	6 min/cycle	7 min/cycle	8 min/cycle
  Power		20.5-24.5 kW	20.5-24.5 kW	24.5-35.5 kW	24.5-35.5 kW
  Overall Dimension	L×W×H	5700×4000×2850 (mm)	7200×4500×3000 (mm)	11000×4500×3000(mm)	2600×3960×2906 (mm)
  Weight		6000 kg	7200 kg	12000	15000 kg
  Room Height Required		6000 mm	6000 mm	6000 mm	6000 mm
